Plywood Edge Cap: Protecting Cut Edges With Caps and Trim
A plywood edge cap protects the cut edge of a panel where moisture, impact, and handling do the most damage. The saw cut exposes the veneer layers and the core, and an unprotected edge wicks water or chips under traffic. Choosing the right edge cap for the plywood edge keeps the panel sealed, the corner struck, and the detail clean.
Why Cut Plywood Edges Need Protection
The cut edge of a plywood panel is its most vulnerable surface: the veneer lines sit exposed, ready to wick moisture into the core and to catch the chips and dings of handling. Edge sealing alone closes the wood pores, but a cap adds a physical barrier that sheds water and absorbs impact. Together the seal and the cap keep the edge from swelling, checking, or darkening.
Working edges take the most abuse. The edge of a pallet deck, a workbench, a dock, or a storage shelf meets the pallet jack, the knee, and the weather, so a cap that covers the whole edge takes the wear instead of the veneer. The cap also gives the panel a dressed, finished line where a bare cut edge looks unfinished.
| Cap type | Best use | Why it is chosen |
|---|---|---|
| Aluminum trim | Docks, work surfaces | Impact and weather resistance |
| Rubber or PVC cap | Protective edging | Flexible, sheds water |
| Solid wood facing | Furniture edges | Dressed, stainable detail |
| Edge banding tape | Case interiors | Thin, clean inner edge |
Metal Edge Caps for Work and Dock Edges
Aluminum and steel caps guard the edges that take the heaviest impact. A metal cap over the plywood edge in a dock, a ramp, or a work station sheds the wear of carts and feet and protects the veneer from crush damage at the strike point. You screw the cap through the face or the edge, and the fasteners seat into the solid panel core.
Metal caps also stop moisture at the waterline of wet-area panels. The cap covers the end grain where water climbs into the core, and the fasteners hold the cap tight across the length. Use stainless or anodized sections where the edge stays damp, and run the cap down the full edge so the cap exposes no point of the cut.
Sizing and cutting the metal cap
The cap must match the panel thickness and the corner radius. Measure the actual panel thickness where you cut the edge, because plywood runs thin or thick within tolerance, and choose the cap that grips that dimension. Cut the cap with a fine saw and deburr the ends so no sharp edge catches a hand or a load.
Plastic and Rubber Edge Caps
PVC, rubber, and composite caps give a softer, simpler protection for interiors and lighter edges. The flexible cap presses onto the raw edge and follows curves and contours where metal cannot bend, and it absorbs the knocks that a workbench edge or a cart aisle hands out. Rubber caps also seal the edge against occasional wetting in laundry, utility, and garage use.
Composite caps come in colors and profiles that dress the edge while they protect it. A rubber or PVC cap covers a rounded edge, a square edge, or a notched profile, and the fitting is a press-on or a slide-on over the cut edge with the sealant at the seam. For light duty, the plastic cap is the fastest way to a protected, finished edge.
Wood Edge Caps and Facing
Solid wood facing caps the edge with a material that matches or contrasts the plywood face and that stains and finishes like a real edge. You glue, pin, or dado the wood cap onto the panel edge, and it dresses the panel so the build reads as solid stock. This is the classic cap for tabletops, case fronts, and shelves where the edge matters to the look.
The wood facing must match the panel thickness and allow for movement across the width. Glue the cap with the grain running along the edge, and pin or clamp it flat while the adhesive sets. A well-fitted wood cap also hides the core line entirely, giving a piece the finished profile of solid timber.
- Seal the cut edge before capping.
- Match cap size to actual thickness.
- Fasten caps into the solid core.
- Run caps the full edge length.
Applying the Cap With a Clean Seat
Cap installation starts with a clean, square edge: sand any fuzz, seal the cut, and wipe the surface dry before the cap goes on. Metal and wood caps get a bead of adhesive or gasket sealant at the seam, and the fastener pattern pulls the cap flat across the length. Pressed or pinned caps need the edge dry and dust-free to seat without a gap.
Trim the cap ends flush with the panel ends and mitre the corners where two edges meet. A mitred corner hides the join, while a cut flush corner accepts the next fixture or the frame. The finished corner is what the eye judges, so the cap lines should meet square and tight.
Edge Caps vs Edge Banding vs Edge Sealer
Caps, banding, and sealer protect edges in different ways and work together. Edge sealer paints the cut pores shut and is the base for every other solution; edge banding is the thin veneer or PVC strip that covers interior and cabinet edges with a clean line; and the edge cap is the thicker, armored protection for working and wet edges. Each one answers a different exposure.
Matching the Cap to the Exposure
Choose the cap by the exposure the edge faces. The working bench and the dock edge take the metal cap that absorbs the impact, the wet-area edge takes the rubber or the PVC cap that sheds the water, and the furniture and the cabinet edge take the wood facing or the thin banding that suits the finish. Layer the protection for the heavy exposures: seal the cut, cap the edge, and topcoat the face so the seam between them never becomes the entry point. The layers share the load that the exposed edge takes every day.
Plan the cap work with the panel cutting order, because the edge that gets capped today cannot take the saw and the planer for the rest of the build. Cut the panel, seal the cut edge, and cap it before the assembly moves on, so the edge protection and the joinery happen on the same panel in the same sequence. The discipline keeps the sealed edges shielded from the dust and the handling of the shop from the first hour.
Where two or three panels meet at a corner, plan the cap mitres so the sections hold the corner square and shed the moisture at the joint line. A mitred metal cap meets at the outside corner with the seam away from the sweep of the cart, and the wood facing mitres the same way to keep the corner crisp. The finished corner of the cap matches the finished corner of the joinery, and the edge protection reads as part of the build rather than an add on.
The Complete Edge Plan
For a complete edge, seal the cut, add banding where the detail is thin, and cap where the edge takes abuse. The three approaches cover the panel from the storage room to the dock, and most builds use at least two of them on the same piece. Match the solution to the edge job: the kitchen cabinet gets banding, the workbench gets the metal cap.
Keep a small stock of the cap profile that fits the panel thickness, because the follow-up repair and the replacement use the same section. Matched caps keep the older edge and the new edge looking like one line, and the stored sealant closes the seam on the same day the cap goes on.
The edge that takes the cart and the weather wears the cap that protects the panel, and the sealed seam keeps the core dry behind aluminum, rubber, wood, or banding. Choose the profile that matches the edge job, seat it on the sealed cut, and the finished edge carries the wear the panel would otherwise carry itself.
Frequently Asked Questions About Plywood Edge Cap
Buyers ask these edge-cap questions.
What is an edge cap for plywood?
An edge cap is a protective trim that covers a cut plywood edge to block moisture, absorb impact, and give the panel a finished line.
Do plywood edges need to be capped?
Working and wet edges benefit from a cap because the cut face is the first place moisture and chips attack. Thin banding can cover interior furniture edges instead.
Can I cap curved plywood edges?
Yes. Flexible rubber and PVC caps follow curves and contours, while metal and solid wood caps suit only straight or gently curved runs.
Should I seal before capping?
Yes. Seal the cut edge first so moisture never meets the exposed core, then cap for the physical barrier and the finish.

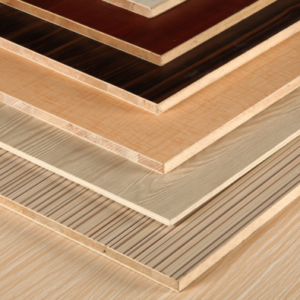

For panel stock that cuts clean and caps square, compare the programme at HYY, which supplies Melamine Plywood cabinet panels and Commercial Plywood work panels that take caps and trim at the edge.
